The Plug & Play filter tower for welding fumes
Healthy indoor air in industry and trade
Air hygiene is also important in industrial operations, as toxic fumes or fine dust are produced during processes such as welding, tacking, or cutting, which must be safely extracted to protect employees, products, and machines. The Plug & Play filter tower for hall ventilation is the ideal complement when spot extraction is not sufficient or practical. More quality, more motivation, more well-being at work!
Reduces viruses,
corona viruses & bacteria
Flexible
Plug & Play solution
Occupational safety according to
TRGS 528 and ArbStättV §3a
Filter technology
according to IFA
Flexible hall ventilation
without piping
The mobile extraction system for industrial halls to extract welding fumes and smoke can be quickly and easily installed using the Plug Play principle. The built-in EC fans with IE5 technology are energy-saving, quiet, and at the same time enormously powerful.
The integrated pre-separator removes coarse particles and potential sparks before they reach the main filters. This significantly increases the filter service life. Optionally, a HEPA H14 filter with a separation efficiency of 99.995% can be used for carcinogenic fine dust, viruses, and bacteria.
For processes such as
- welding
- tacking
- cutting
- soldering
- flame cutting
Inside = Outside
Work as if in fresh air
Advantages of FlowX
Plug Play
The filter towers operate fully automatically and are ready for use in less than a minute, as no piping is required.
guidelines
Comply with the legal dust limit values at the workplace according to TRGS 528 and ArbStättV §3a and protect your employees.
Safety protection
The proven layered ventilation improves air quality for a healthy indoor climate. The optional HEPA H14 filter removes fine dust, viruses, and bacteria from the air.
Lifespan
The integrated pre-separator, highly effective permanent filters, and the automatic jet-pulse cleaning guarantee maximum filter service life and minimize operating costs.
Efficiency
Save up to 70% on heating costs and up to 50% on energy costs through adjustable and energy-saving system operation.
Application
Flexible hall ventilation for new or existing halls/rental halls. Easy retrofitting and intuitive control via display.
Secure up to 40% government funding!
Quiet, energy-efficient, and flexible.
Longer filter life
Through grooved
Nano-coating
Draft-Free 360° air discharge
for optimal
room air distribution
Lower heating costs
through effective
heat recovery
Low noise level
at a performance
of 12,500 m³/h
Fresh air: layer by layer
A proven system in hall ventilation is the layered ventilation according to IFA recommendations. Due to thermal effects, the contaminated, warm air rises. It is extracted through the inlet on the upper side of the filter tower and cleaned through several filter stages. The clean air is then fed back into the room near the floor without drafts. This creates a protected zone for employees and machines with near-outdoor air quality.
FILTER
- Permanent filter cartridges
- Dust Class M
- Automatic jet-pulse cleaning
OPTIONS
- HEPA H14 filter (upgradable)
- Custom color branding
for dealers
INSTALLATION
- Plug Play/power and compressed air connection
- No piping required
- Secure installation with crane lugs
More information and technical details in the › Data Sheet

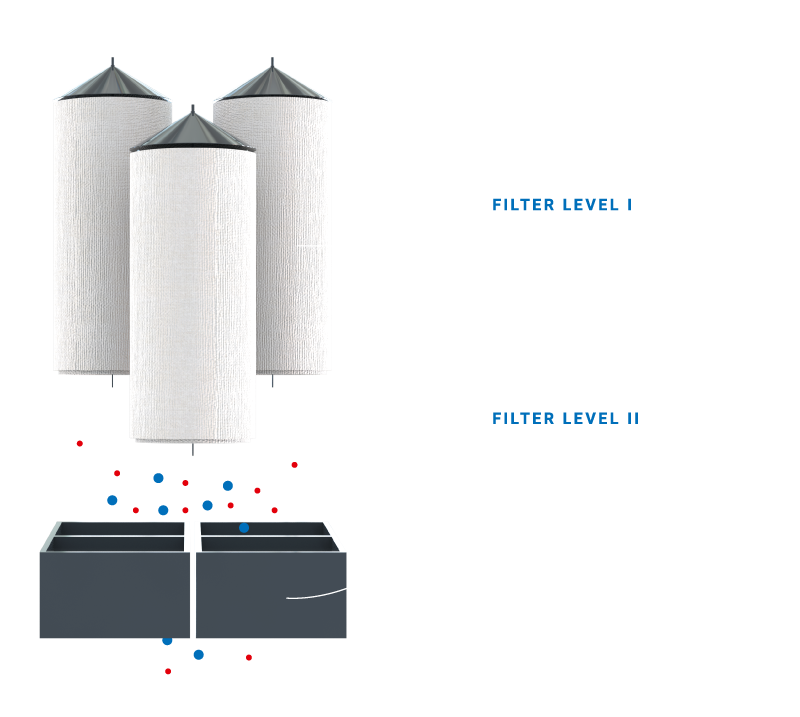

Filtration technology
The air is cleaned through multiple filter stages and returned to the work area without drafts. The lower fresh air layer ensures optimal working conditions at the workplace and is regularly circulated.
All Information in the brochure
available for free download!
Minimalist design with maximum effect.
Efficiency and innovative technology packaged in a timeless design. The rounded corners and the interplay of materials create a strong aesthetic quality on the outside. But also inside the system, the low-edge design and ideal air guidance ensure low pressure loss and minimal deposits.
Equipped with a HEPA H14 filter, FlowX also removes suspended micro-particles such as fine dust, viruses, and bacteria – including Covid viruses – and improves air quality in industrial halls.
VIRUSES
BACTERIA
WELDING FUMES
STAINLESS STEEL DUST
POLLEN ALLERGENS
MOLD SPORES
Healthy indoor air provides safety for your employees and customers, prevents illnesses, and makes work easier for allergy sufferers.
Healthy indoor air provides safety for your employees and customers, prevents illnesses, and makes work easier for allergy sufferers.
Get up to 40% funding!
The Federal Office for Economic Affairs and Export Control (BAFA) and the Kreditanstalt für Wiederaufbau (KfW) offer a federal funding program to increase energy efficiency in industry. Small and medium-sized enterprises receive 40% funding. The funding is limited to a maximum of €200,000 per investment project. Consult with your energy advisor.
Further links:
What our customers partners say
»The performance of the filter tower clearly stands out from the competition and is contemporary in design and energy consumption.
A high-quality product and reliable after-sales service are crucial for me as a specialist dealer for a successful partnership.
My customers appreciate the modern design and smooth operation of the filter tower.«

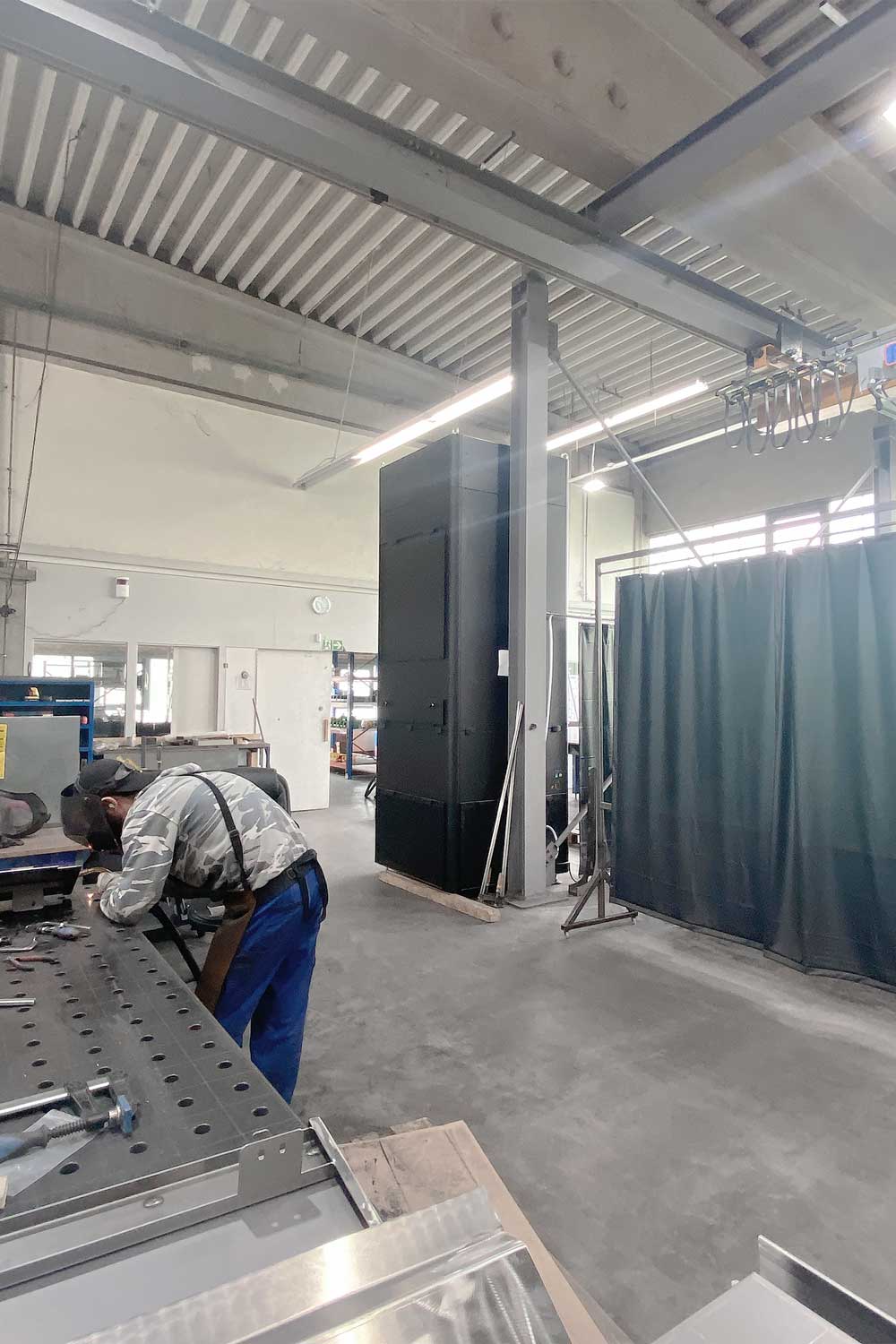

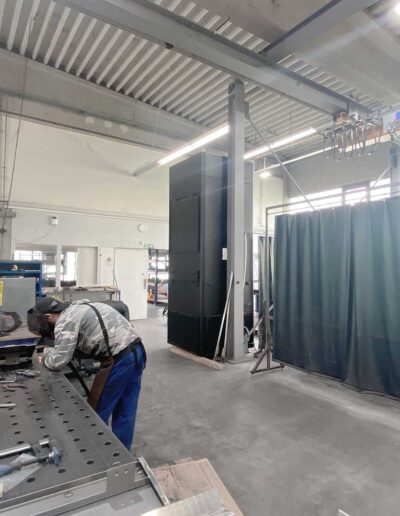

»Following the explicit recommendation of our welding specialist dealer Uhl, we decided on the XTRACTION filter tower. When comparing with other filter towers, especially in terms of performance and energy efficiency, the FlowX proved to be the optimal choice.
The noise level played a decisive role in our decision, as other filter towers were louder yet had lower performance. Our employees and customers immediately noticed that the smoke odor was reduced and the air quality noticeably improved. Additionally, the dirt deposits have decreased, requiring less time for cleaning work.

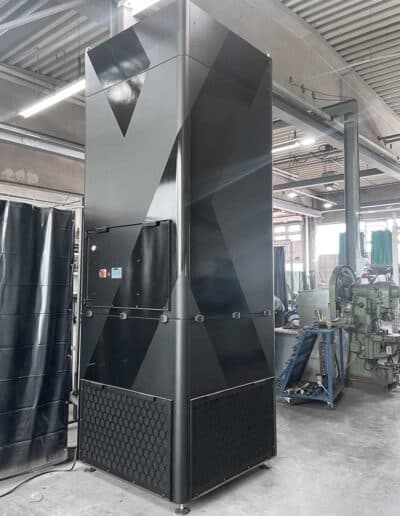

Thanks to the individual design, we were able to visually match the filter tower to our new fiber laser. As a result, our machine park now looks modern and uniform.«
Better. Healthy. Work.
With the FlowX Filter Tower from XTRACTION!
If you are interested or have any questions, please feel free to contact us at
